Telecom Power System with Two Compartments of 6kW Rectifier and 6kW Solar MPPT
1. Introduction of Two Compartment Telecom Power System

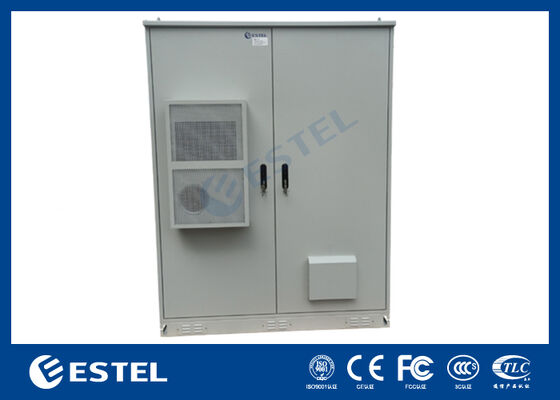

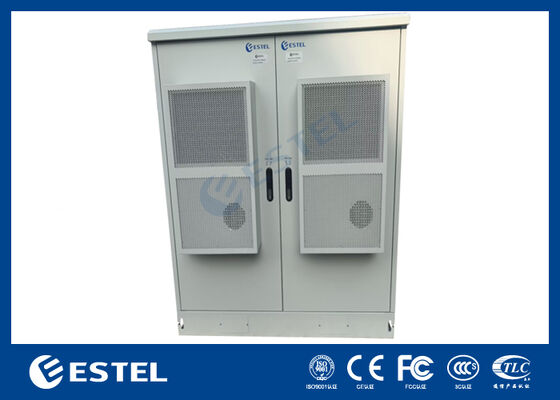

ET15075200A-38U-12kW is a two-compartment outdoor power cabinets with a left cabin for DC telecom power, and a right cabin for batteries.
Its power capacity is 6kW rectifiers and 6kW solar photovoltaic power. With the two cabin design, this power cabinet provide larger space and convenient management for users.
The left cabin is designed with a DC48V 1500W air conditioner, to provide a suitable operation temperature for the telecom power and user’s IT equipment.
The right cabin is designed for compatible with 19’’/21’’ racks and battery shelves, providing enough space and flexible battery type selections for user.
2. Features of Two Compartment Telecom Power System
● High protection grade: IP55;
● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock;
● Adopt highly efficient cooling unit: Air conditioner;
● Comprehensive protection optional: door sensor, smoke sensor, water sensor, temperature and humidity sensor, etc.;
● Support remote management, improve security and minimize customer’s operation cost;
3. Applications of Two Compartment Telecom Power System
The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets, etc.
This outdoor telecom cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
4. Configurations of Two Compartment Telecom Power System
| Item |
Parameter |
Index |
| Cabinet |
Model |
ET15075200A-38U |
| Protection Level |
IP55 |
| External Dimension |
1500 (W) × 750 (D) × 2000 (H) mm, including a base of 150mm high (Size can be customized) |
| Internal Space |
19’’ standard racks, 2× 38U |
| Material |
Single-wall structure; Cabinet enclosure: 1.2mm thick galvanized steel sheet; Racks: 2.0mm thick galvanized steel sheet; |
| Insulation |
20mm PEF |
| Coating |
Polyester powder coating |
| Color |
RAL7035 |
| Lock |
Anti-theft three-point locking system |
| Hinge |
Inner hinge |
| Installation |
Floor-mounted |
| Cable Routing |
Cable in and out from the bottom of cabinet |
| Maintenance |
Two front door, front maintenance |
| Cooling |
Air Conditioner |
1 set of Air Conditioner; Cooling capacity: 1500W; -48VDC; |
| LED Lamp |
2 sets LED lamps with switch, -48VDC, for illumination in the cabinet
(Led lamp automatic on when door is opened)
|
|
Field Supervision Unit
(FSU)
|
PM5000TT-TS4 (Standard version), including: 1× Temperature and humidity sensor, 1× Smoke sensor, 1× Water leakage sensor, 2× Door sensor
(FSU can be used to monitoring power system, batteries, air conditioners, ect; FSU supports connection to client’s central monitoring platform for remote monitoring.)
|

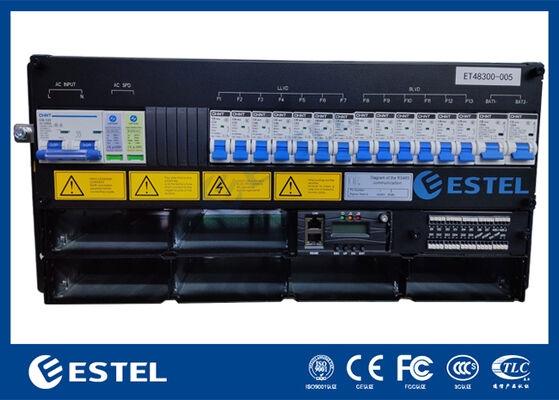

| Power System |
6kW Rectifier System + 6kW Solar System
(See the last page for details)
|
| Lithium Battery |
6 sets of LiFePO4 Battery, Model: LFELI-48200, 48V, 200Ah, 6000 cycles; 442 (W) ×520 (D) ×244 (H) mm, 79.3kg |
| Environment |
Working Temperature |
-40℃ to +55℃ (+Solar Radiation) |
| Storage Temperature |
-40℃ to +70℃ |
| Working Humidity |
5% to 95% (No condensation) |
| Working Altitude |
0 to 4000m |
| Package |
Wooden case |
5. Drawings of Two Compartment Telecom Power System
