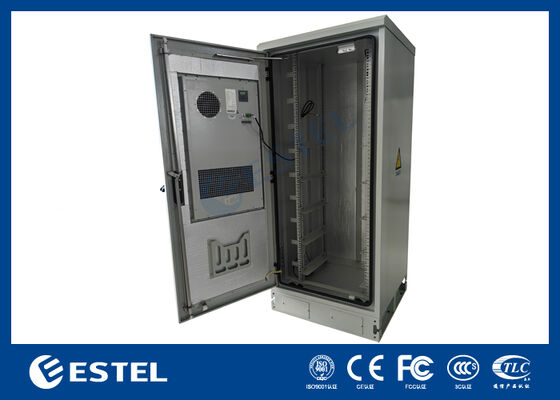

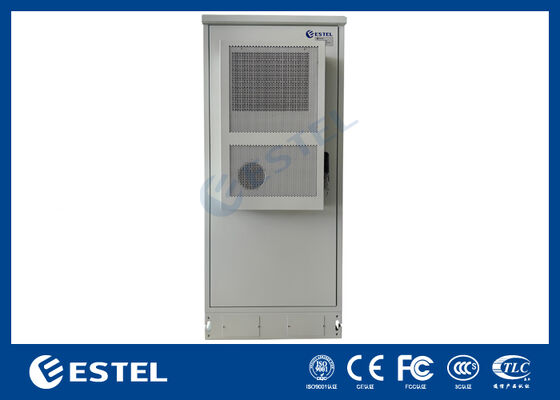

IP Grade Protected Outdoor 32U Floor Cabinet for Telecommunication Critical Infrastructure
Product Overview of Outdoor 32U Floor Cabinet
This industrial-grade cabinet features a robust double-layer construction, designed for telecommunications, power distribution, and industrial control systems requiring high protection, heavy load capacity, and active thermal management. It supports 32U of standard 19-inch equipment and is equipped with an integrated air conditioner, making it suitable for outdoor or semi-outdoor environments.
Key Dimensions & Capacity of Outdoor 32U Floor Cabinet
External Dimensions (H x W x D): 1750 mm x 800 mm x 1000 mm (Customizable)
Internal Space: 19-inch, 32U
Mounting Type: Floor mounted
Material & Construction of Outdoor 32U Floor Cabinet
Structure: Double-layer design
Material (Outer Layer): 1.2 mm galvanized steel plate
Material (Inner Layer): 0.8 mm galvanized steel plate
Load-Bearing Components: 2.0 mm thickness
Insulation: 20 mm PEF (Polyethylene Foam)
Coating: Polyester powder coating
Color: RAL 7035 (Light gray)
Mechanical Features of Outdoor 32U Floor Cabinet
Locking System: Anti-theft three-point locking system
Hinge Type: Inner hinge
Cable Management: Cable entry/exit from the bottom of the cabinet
Maintenance Access: Front maintenance via single front door
Cooling System of Outdoor 32U Floor Cabinet
Type: Integrated industrial air conditioner
Power Supply: AC 220V, 50Hz
Cooling Capacity: 1500 W
Quantity: 1 set
Advantages of Outdoor 32U Floor Cabinet
Durable & Secure: The double-layer galvanized steel (1.2mm/0.8mm) with 2.0mm load-bearing parts and a three-point locking system ensures high physical security and structural integrity.
Thermal Management: The 20mm PEF insulation combined with a 1500W air conditioner allows the cabinet to maintain optimal operating temperatures in high-heat environments.
Convenient Maintenance: Front-only access design simplifies on-site maintenance and saves space.
Customizable: Overall dimensions can be tailored to specific project requirements.
| Configuration |
Item |
Technical Parameter |
| Cabinet |
Type |
Outdoor 32U Floor Cabinet |
| Protection Level |
IP65 |
| External Dimension |
H1750mm×W800mm×D1000mm,
With a 150mm plinth( can be customized )
|
| Internal Space |
1*19 inch 32U |
| Material |
Double-layer, with an outer layer of 1.2mm and inner layer of 0.8mm galvanized steel plate; Thickness of load-bearing components: 2.0mm
|
| Coating |
Polyester powder coating |
| Color |
RAL7035(customized) |
| Lock system |
Anti-theft three-point locking system |
| Hinge |
Inner hinge |
| Installation |
Floor installation |
| Cable entry |
Cable-in and cable-out from the bottom of cabinet |
| Maintenance |
One front door, maintenance from the front |
| Cooling Mode |
Air Conditioner |
1500W, 220VAC, 50Hz, 1 set |
| LED Lamp |
AC220V,50Hz, used for illumination in the cabinet,1set |
| Environment |
Working Temperature |
-40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature |
-40℃~+70℃ |
| Working Humidity |
5%~95%(No condensation) |
| Working Altitude |
0~4000 meters |
| Package |
Wooden case |
1 unit per case |
